VS4000 Programmatic Universal IC Programmer Chip IC PC BIOS MCU LCD IC

100% as advertised,new,packed, original,genuine
1-year warranty
Home Delivery Available

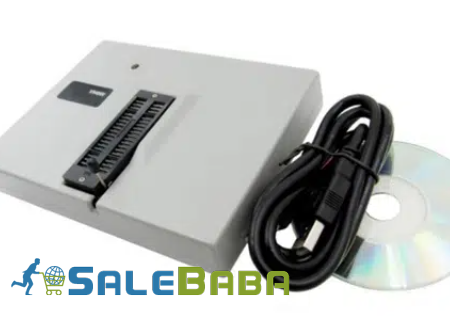

VS4000P USB Universal Programmer IC Programmer Kit For Laptop BIOS Flash MCU LCD Memory Programming

Number of locking feet: 40 feet
Supported chip types: about 18,000
Maximum capacity supported: 512Mbit
Communication and power supply: USB interface
Support system: Win XP/7/8/10
Standard configuration includes: programmer host, USB cable, CD-ROM (software and instructions)
The supported chip model is subject to the device, you can download the device list or programmer software to view

Commonly used 51 single chip microcomputer
ATEML: AT89C51/52, AT89S51/52, AT89C2051,
WINDBOND: W77E58/058/516. . . , W78E052/058/516. . .
SST: SST89E516/516RD2. . .
SyncMOS: SM8952A/B. . .
Commonly used PIC microcontrollers
PIC12Cxxx/PIC12Fxxx/PIC16Cxxx/PIC16Fxxx. . .
PIC18Fxxxx/PIC18LFxxxx. . .
Commonly used AVR microcontroller
ATmega8/16/32/48/88/162/163/164/168/8515. . .
ATtiny10/11/12/13/15/24/25/28/44/45/84/2313. . .
AT90Sxxxx

Features:
- High speed, simple operation, stable performance.
- Support 18,000 chips to read and write.
- Support memory: For Flash/EEPROM/EPROM, etc.
- Support MCU: For 51/PIC/AVR, etc.

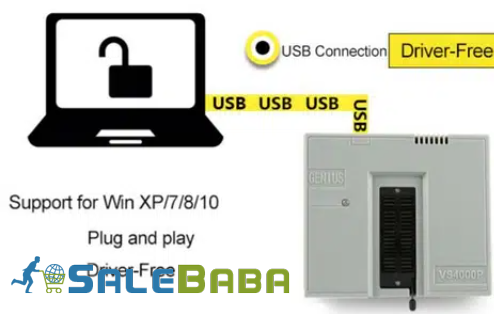

- Automatic driver installation online, support for WinXP/7/8/10.
- USB power supply and communication. Support multiple voltage gears. 1.8V chip does not require an adapter.
- Support maximum capacity 512Mbit.
- Support logic IC test: 74/4000 series.
- High-speed reading and writing: Measured list of programming time of some chips is shown in the figure below.
- Software interface is simple and easy to understand.
- Freely switch between operation information and data display.
- One-click operation of device address range, easy to set. Write with one click.
- After selecting the chip model, place the chip according to the picture.
type: Universal Programmercolor:grey brand:S
